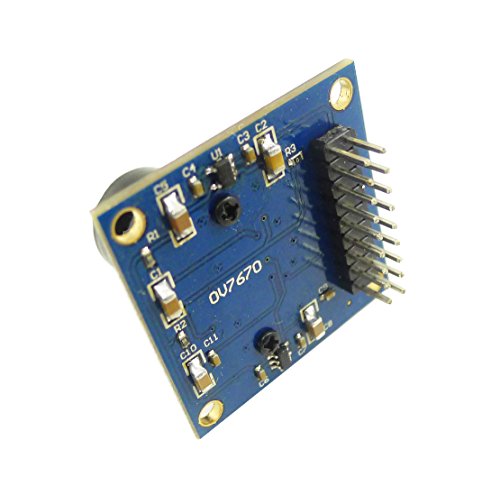

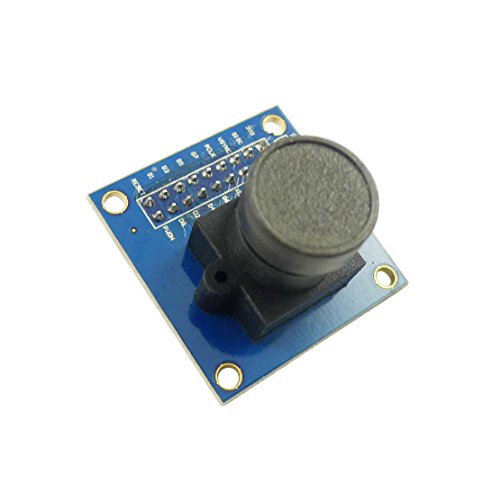

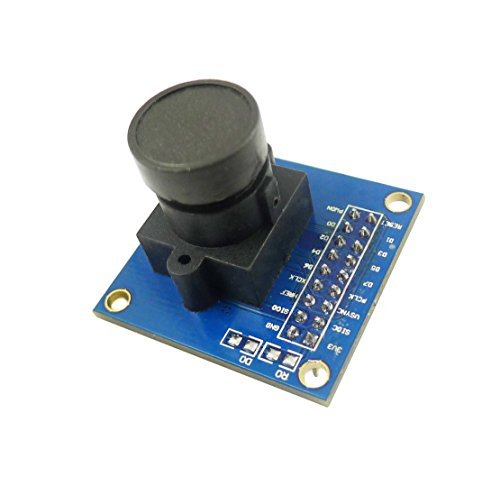

Aihasd OV7670 300KP VGA Camera Modul For Arduino

Key parameters: photosensitive array 640X480 IO voltage 2.5V to 3.0V ( internal LDO to core supplies ) power operation 60mW/15fpsVGAYUV Sleep< 20 μ A temperature operation: -30 ° C to 70 ° C Stable operating temperature: 0 ° C - 50 ° C output format: 8 -bit YUV/YCbCr4 4: 2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data Optical size: 1/6 " field of view angle: 25 ° maximum Zhen rate 30fps VGA Sensitivity 1.3V / (Lux-sec) signal to noise ratio: 46 dB dynamic range: 52 dB browsing mode progressive electronic exposure area of 3.6 μ mx 3.6 μ m dark current 12 mV / s at 60 ° C Package included: 1 x OV7670 300KP VGA Camera Module For Arduino
