Pololu USB AVR Programmer

21,59 €

Zuletzt aktualisiert am: 20. Februar 2018 17:09

Kategorie

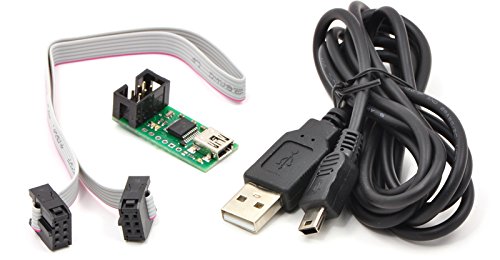

General AVR ISP Programmer The Pololu USB AVR Programmer is an extremely compact, low-cost in-system programmer (ISP) for Atmel's AVR mirocontrollers, which makes this device an attractive programming solution for AVR-based controllers like our Uno335. The USB AVR programmer connects to your computer's USB port via an included USB A to mini-B cable and communicates with your programming software, such as Atmel Studio or AVRDUDE, through a virtual COM port using the AVRISPV2/STK500 protocol. The programmer connects to your target device via an included 6-pin ISP programming cable (the older, 10-pin ISP connections are not directly supported, but it's easy to create or purchase a 6-pin-to-10-pin ISP adapter).Supported MicrocontrollersThe programmer should work with all AVRs that can be programmed with the AVR ISP interface, but it has not been tested on all devices. It has been tested with the typially used ones like ATmega328P etc. The programmer features upgradable firmware, allowing updates for future devices. It does not currently work with Atmel's XMega line of microcontrollers.The programmer is powered by the 5V USB power bus, and it is intended for programming AVRs that are running at close to 5 V (note that the programmer does not deliver power to the target device).Supported Operating SystemsThe programmer has been tested under Windows XP, Windows Vista, Windows 7, Windows 8, and Linux. There is limited support for using this programmer on Mac OS X; please see the user's guide for details. This programmer is not compatible with older versions of Windows.Bonus Feature: TTL-level serial portThe USB AVR programmer doubles as a USB-to-serial adapter. The programmer installs as two virtual COM ports: one for communicating with programming software and one for the general-purpose USB-to-serial adapter. This means that you can seamlessly switch between programming an AVR and debugging it through the TTL ser

Beschreibung

Weitere tolle Produkte findest du auf unserer Startseite https://pc-liebe.de.

21,59 €

Zuletzt aktualisiert am: 20. Februar 2018 17:09

Jetzt Preis prüfen auf *
