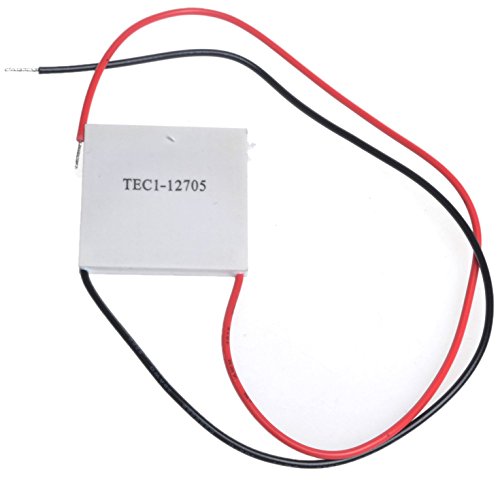

TEC1-12705 Thermoelectric Cooler Kühlkörper Peltier-Platte Modul 40x40mm 12V

12,99 €

Zuletzt aktualisiert am: 20. Februar 2018 23:40

Kategorie	Notebook-Zubehör
Unterkategorie	Cooling Pads

TEC1-12705 Thermoelectric Cooler Cooling Heatsink Peltier Plate Module 40x40mm 12V Description: TEC1-12705 Thermoelectric Cooler Cooling Heatsink Peltier Plate Module 40x40mm 12V Features: •Brand new TEC1-12705 Thermoelectric Cooler Cooling Heatsink Peltier Plate Module 40x40mm 12V•Internal resistance: 2.4 ~ 2.7Ω (ambient temperature 23 ± 1 ¡æ, 1kHZ Ac test) •Maximum temperature: ¡÷ Tmax (Qc = 0) :60 ¡æ •Operating current: Imax = 12 (rated voltage startup) •Rated voltage: DC12V (Vmax: 15.5V) •Cooling power: Qcmax 30W •Assembly Pressure: 85N/cm2 •Working environment: Temperature range -55 ¡æ ~ 83 ¡æ (high ambient temperature will directly affect the cooling efficiency) •Storage conditions: -40 ~ 60 ¡æ •Encapsulation Process:Standard 704 Silastic Seal •Model : TEC1-12705 •COUPLES : 127 •Current ( Max ) : 5A •Voltage ( Type ) : 12V •Voltage ( Max ) : 15.2V •Dimension: 40 X 40 X 4.2 MM Package Included: •1 X TEC1-12705 Thermoelectric Cooler Cooling Heatsink Peltier Plate Module 40x40mm 12V
